Integrated Energy Storage Enclosure

Product Overview

Kaiyang Electric’s power enclosure product line covers box-type substation enclosures (European-type, American-type, and Huabian-type), energy storage containers, and prefabricated cabins (flat-panel, modular, and container-type) . These products are widely used in renewable energy power generation, power grid construction, industrial parks, residential communities, mining enterprises, airports, and railway stations.

Kaiyang power enclosures are built upon five core values: no leakage, no rust, no deformation, no delay, and no roughness, providing rugged, sealed, fast-installation, and weather-resistant protective shells for power storage and substation systems.

 Production & Manufacturing Capabilities

The company is equipped with specialized machinery for transformer, energy storage container, and metal enclosure production, enabling full-process control from sheet metal processing, forming and welding, automated coating, to sealing inspection – meeting stringent outdoor requirements for strength, corrosion resistance, and waterproofing.

 Core Equipment Overview

Process	Equipment
Sheet Processing	Coil leveling line ×1
Precision Cutting	6kW laser plate cutters ×2, tube cutters ×2
Precision Forming	CNC press brakes ×11
Welding Cluster	MIG welders ×30, TIG welders ×10
Surface Treatment	Automated coating line ×1 (14 Swiss Gema guns), large spray booth / curing oven / paint booth ×1 each
Sealing Inspection	Gantry-type spray leak test station ×1

 Integrated Manufacturing System

Kaiyang Electric maintains a complete production chain: Leveling → Cutting → Bending → Welding (MIG + TIG) → Automated Spray Coating & Curing → Spray Leak Testing – enabling one-stop, turnkey delivery.

 Core Processing Advantages

Through-Type Section Shot Blasting Machine: Equipped with 12 blast wheels for 360° full-surface treatment, effectively removing mill scale and impurities, ensuring a clean and uniform surface; enhances surface roughness for improved paint adhesion; relieves internal stress, boosting structural strength and service life.

CNC Punch Press: Dual-servo direct-drive technology, punching speed up to 515 strokes/min, powerful and energy-efficient; 50mm thickened bed for rigidity, multi-station integrated design, positioning accuracy ±0.01mm; automatic material storage for loading/unloading, minimizing downtime and maximizing efficiency.

Laser Cutting Machines: Multiple 6000W high-power large-format laser cutters and profile cutters, delivering high cutting accuracy with smooth, burr-free edges – no secondary grinding required; flexible processing for complex shapes, material-saving and efficient; non-contact processing ensures minimal deformation and excellent consistency.

CNC Press Brakes: Over 10 high-precision CNC press brakes, precisely controlled by CNC systems for accurate positioning and easy operation; rigid, stable performance ensures precise bending angles and high workpiece consistency.

Coating Production Line: One continuous coating line, one large integrated spray booth, and one curing oven; Gema brand spray guns ensure high electrostatic coating efficiency and uniform film thickness; high powder recovery rate, combining environmental protection, energy saving, and superior corrosion resistance.

 Product Types & Features

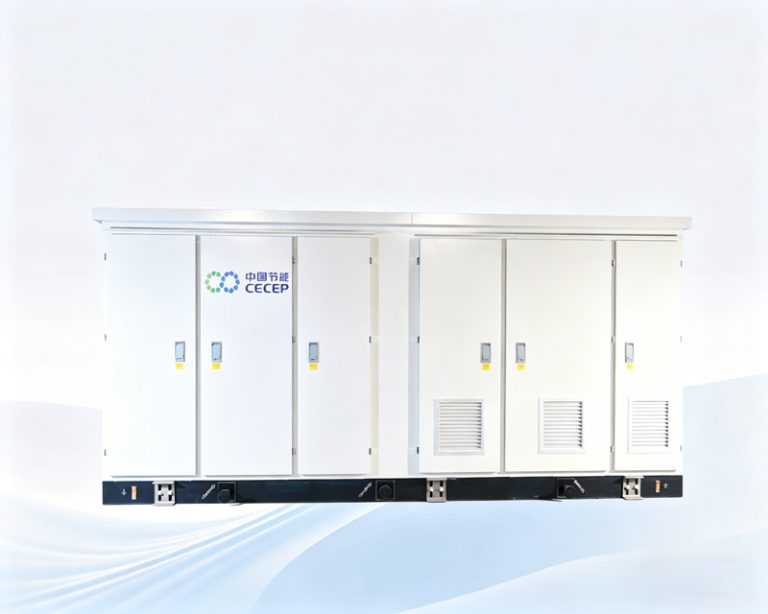

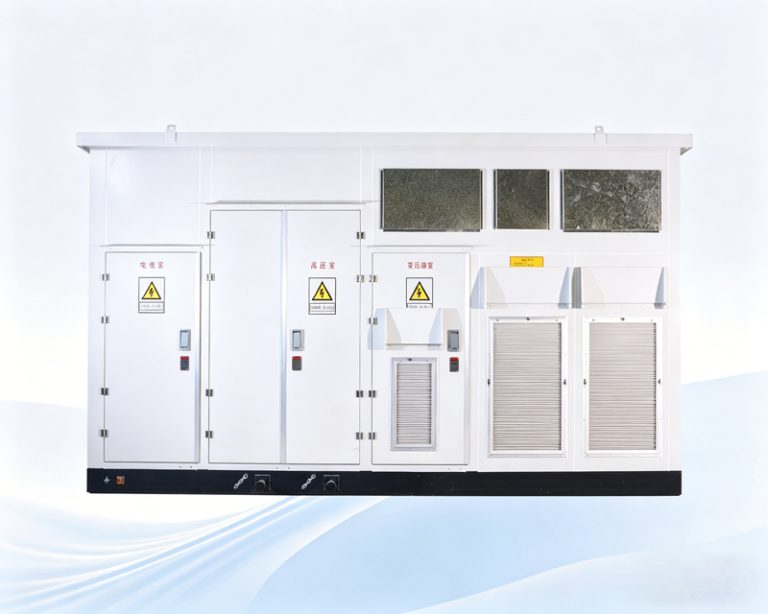

 Box-Type Substation Enclosures

Box-type substation enclosures integrate the transformer core, high-voltage load switches, fuses, and other components within the transformer oil tank. Due to oil immersion, component volume is significantly reduced, resulting in a compact structure and convenient installation. The fully insulated and sealed design offers ease of operation and maintenance-free performance.

European-Type Enclosures: Constructed from Aluzinc steel sheets with a frame using standard container materials and processes, ensuring 20-year corrosion protection. Sandwich panels use high-quality insulation materials, enabling normal operation in harsh environments from –40°C to +40°C. Full station intelligent design supports “four-remote” functions (telemetry, telesignaling, telecontrol, and teleadjustment), meeting unmanned substation requirements. All equipment is factory-installed and pre-commissioned, reducing on-site installation to approximately 5–8 days.

American-Type Enclosures: Compact footprint, easy placement and concealment, harmonizing with community environments. Integrates high-voltage reception, transformer step-down, and low-voltage distribution in a rust-proof, dust-proof, rodent-proof, anti-theft, insulated, fully enclosed, and mobile steel structure enclosure.

Huabian-Type Enclosures: Flexible material options (cold-rolled steel, Aluzinc, composite panels). High and low voltage switchgear arranged in parallel with clear structural separation, simplifying maintenance and operation. Particularly suitable for outdoor environments such as photovoltaic and wind farms.

Landscape-Type Enclosures: Oil-free, multi-combination, maintenance-free, modular, prefabricated, and environmentally adaptable. Double-layer, sealed, rust-proof materials provide high mechanical strength. Attractive appearance with options for advertising light boxes, artistic styling, etc., blending with surroundings. Modular design allows flexible combination and convenient cable entry/exit.

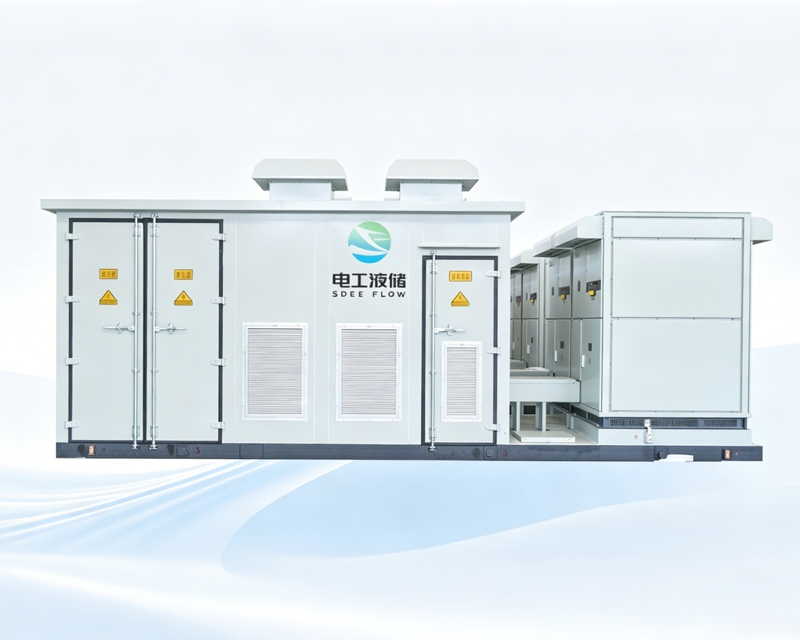

 Energy Storage Containers & Prefabricated Cabins (E-Houses)

Prefabricated cabins feature a compact layout, occupying significantly less land than conventional substations. They are designed to withstand rain, snow, wind-blown sand, dust, salt fog, and impact. All equipment is factory-standardized, with wiring, debugging, and testing completed before shipment – minimizing adverse on-site conditions. Installation is simple and fast, deployable in extreme temperatures, on indoor/outdoor concrete slabs, or rough terrain.

Widely used in urban construction, residential communities, public buildings, municipal works, and industrial enterprises.

 Core Process Advantages

 Five Core Values

– No Leakage: Gantry spray leak testing ensures rainstorm-proof outdoor operation

– No Rust: Gema automatic spray coating delivers salt-spray resistance for extended durability

– No Deformation: Leveling eliminates internal stress, preventing twisting during lifting and transport

– No Delay: Full in-house production ensures controllable lead times

– No Roughness: Laser cutting + TIG welding + automatic spray coating deliver industrial-grade aesthetics

 Precision Manufacturing Assurance

Kaiyang Electric is equipped with dozens of CNC punches, laser cutters, and CNC press brakes, plus automated coating and painting lines. A mature design and production team provides full-process tracking services from design and manufacturing to factory inspection, transport, installation, and maintenance.

 Quality Assurance & Industry Recognition

Kaiyang Electric has accumulated multiple core invention and utility model patents, with products widely deployed in national power grid infrastructure. The company has established deep cooperation with industry leaders including China XD Group, TBEA, Shandong Electric, Luneng Group, and Taikai Group, with over 200 power project track records supporting the development of industry benchmark enterprises.

 Global Project Track Record

Kaiyang Electric’s primary markets span China, Central Asia, Southeast Asia, Africa, Europe, and the Americas. Core clients include members of China Electrical Equipment Group (Shandong Electric Engineering & Equipment Group Co., Ltd., China XD Electric Co., Ltd., Xuji Transformer Co., Ltd.), TBEA Co., Ltd., Taikai Group Co., Ltd., Zhongtian Technology Group Co., Ltd., Jiangsu Huachen Transformer Co., Ltd., and Shandong Luneng Taishan Power Equipment Co., Ltd.

 International Projects (Selected)

Europe

– Poland: Electrical enclosures for 35kV prefabricated switching stations in Warsaw Urban Grid Upgrade

– Italy: 35kV prefabricated cabin enclosure for Milan industrial and commercial distribution network

– Romania: Enclosures for 35kV intelligent box-type substations in Bucharest distributed PV projects

– Russia: Secondary equipment prefabricated cabins for Irkutsk Far East Power Grid

Central Asia & Middle East

– Saudi Arabia: Enclosures for 35kV box-type substations and BESS cabins in Riyadh Industrial Zone

– Oman: Enclosures for 35kV prefabricated substations at Duqm 500MW PV Plant

– Kazakhstan: Enclosures for 35kV modular step-up prefabricated cabins at Nur-Sultan Wind Power Base

Africa

– Burkina Faso: Enclosures for 35kV box-type substations and BESS cabins at Ouagadougou Sahara PV Plant

– South Africa: Enclosures for 35kV dry-type box-type substations in Johannesburg Urban Grid

– DR Congo: Enclosures for 35kV BESS grid-tied prefabricated cabins for Kolwezi Mining New Energy Project

Americas

– Mexico: Enclosures for 35kV BESS cabins and prefabricated units for Monterrey commercial and industrial storage

– USA: Enclosures for 35kV pad-mounted / combined box-type substations in California industrial parks

– Chile: Prefabricated cabin enclosures for XD International Converter Station project

 Domestic Key Projects (Selected)

– China XD Group – Huaneng Dalian Pulandian double-layer transformer enclosures (5700×2250×2900mm, 18 units / 12 units)

– China XD Group – Xiamen Kehua integrated machine (7400×3200×3150mm, 23 units)

– China XD Group – Dunshi Technology 2500KVA energy storage integrated machine (5200×3200×2900mm, 25 units)

– China XD Group – Kehua energy storage enclosures (7400×3200×3150mm, 15 units)

– Legrand Intelligent Electrical – Huai’an ecological governance integrated energy demonstration project (5300×2100×2750mm, 11 units)

– Legrand Intelligent Electrical – Jiangsu Huadian Yangzhou Baoying 35kV box transformer (5000×2100×2700mm, 12 units)

– Legrand Intelligent Electrical – CRRC Shangdu industrial park 300MW green power supply project (5000×2100×2750mm, 28 units)

– Legrand Intelligent Electrical – Baotou Damaoqi zero-carbon industrial park Phase I (5000×2100×2750mm, 16 units / 6000×2000×2590mm, 12 units)

– Westinghouse – Xinjiang Ganquanbao project (9000×3300×3000mm, 30 units)

– Westinghouse – Shaanxi Baishuigou project (9700×3200×3000mm, 26 units)

– Westinghouse – Hetian Jinzhi Luopu 50MW energy storage project (10000×3200×3230mm, 10 units)

– CLP Holdings – Shijiazhuang Luancheng 100MW-400MWh independent energy storage project (8700×3200×3600mm, 20 units)

– China Electric Equipment Group – CEEC Shapotou agro-PV-storage integration project (5900×2250×2700mm, 20 units)

 Customization Services

Kaiyang Electric offers comprehensive OEM/ODM customization services, allowing flexible adjustments to enclosure dimensions, materials (cold-rolled steel, Aluzinc, composite panels, stainless steel, etc.), protection ratings, colors, and internal layouts. A well-established after-sales service system provides timely and comprehensive support, helping customers select and use products correctly and resolving technical issues efficiently.

Kaiyang Enclosures – Solid Protection from the Core; Thousands of Units as Shields, Defying Wind and Rain. Kaiyang Electric is committed to building rugged, sealed, fast-installation, and weather-resistant protective shells for power storage and substation systems.
